Lenght 17,93 M
Guests 14
Cabins 3+1
Jet (Tender) 2,85 M
Click to enlarge


Hard top: maximum comfort in the flydeck area

Garage: Jet tender  2.8 m + seabob +  n. 3 set diving

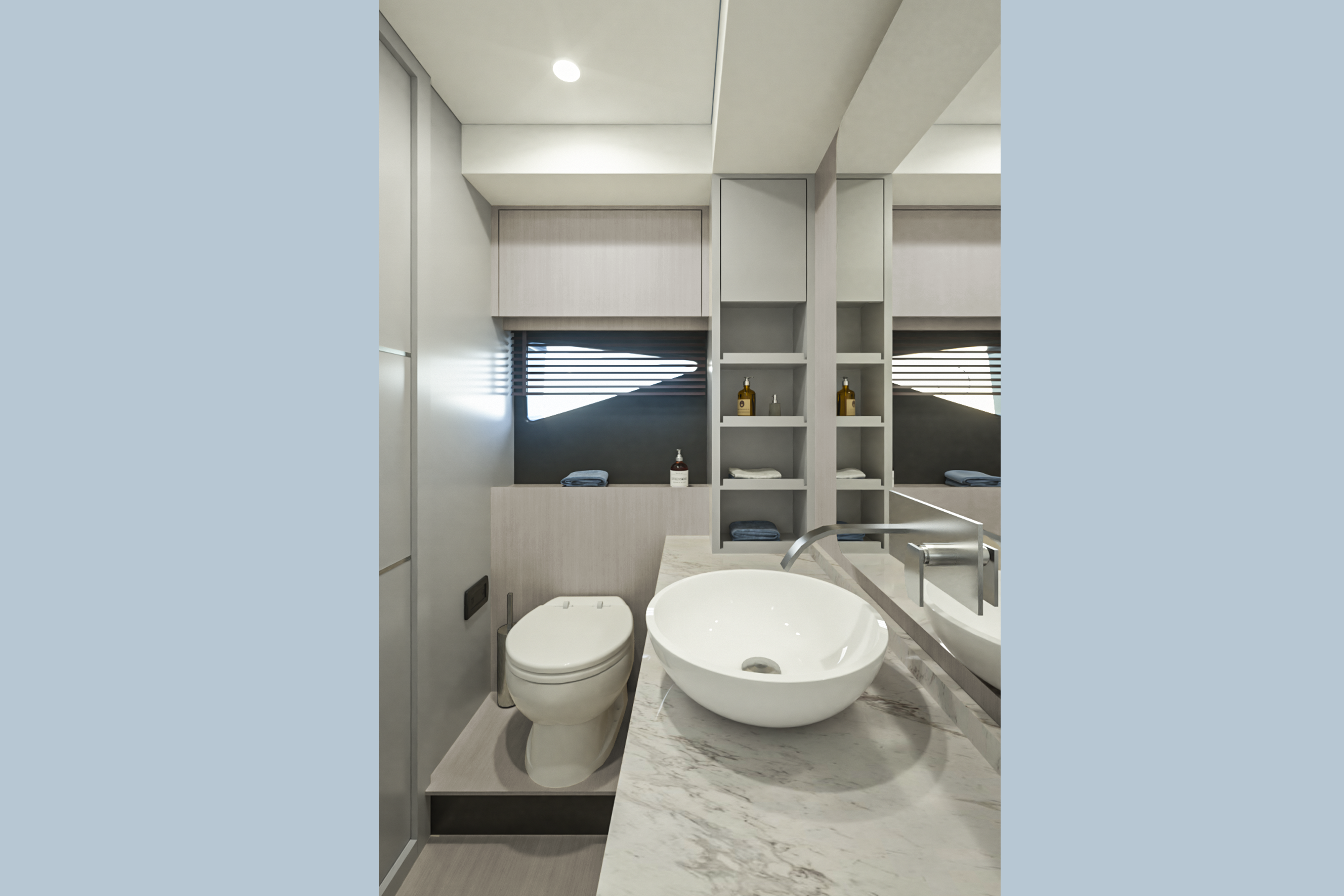

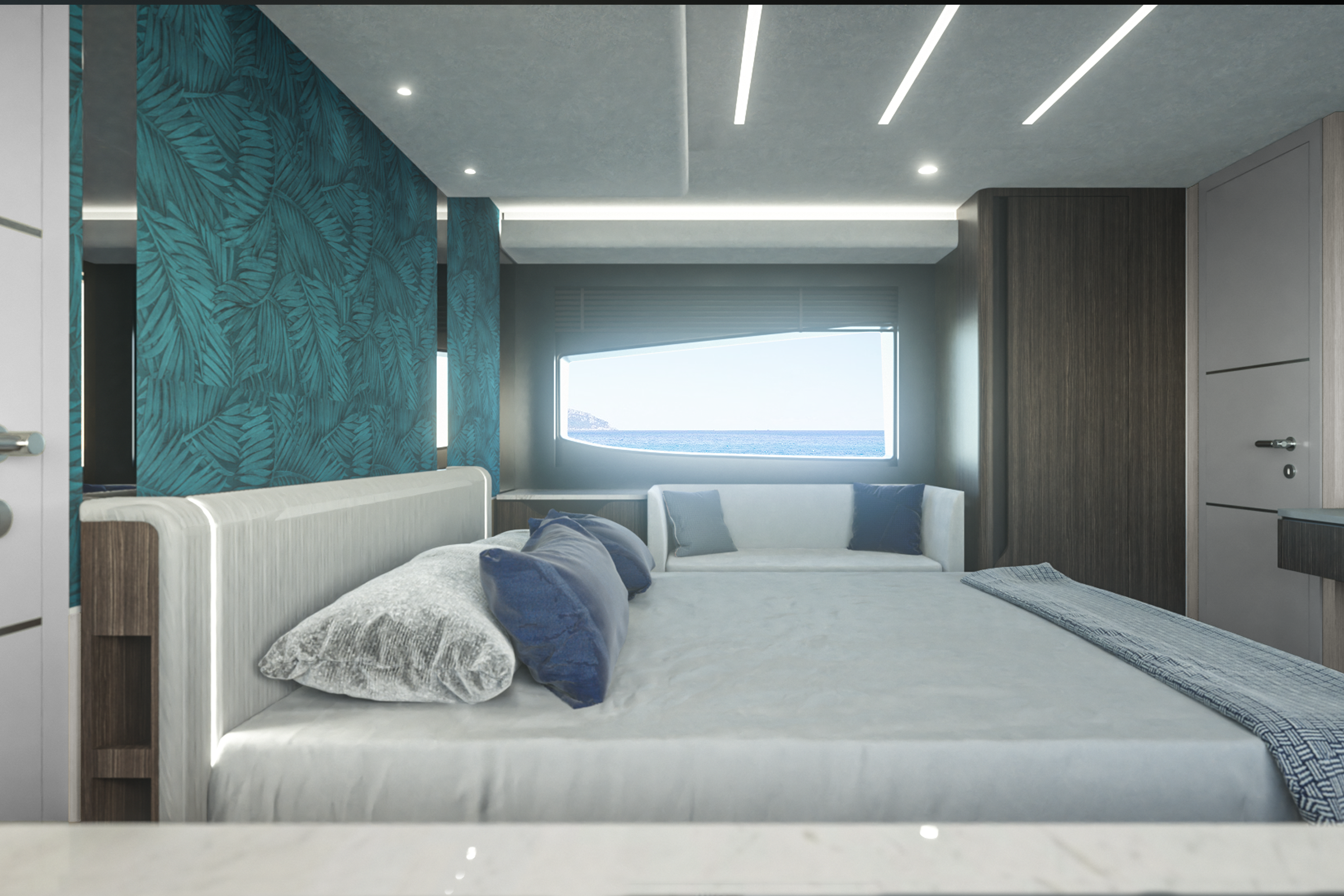

Spacious and bright Interior (large side windows – cabins – bathroom – saloon)

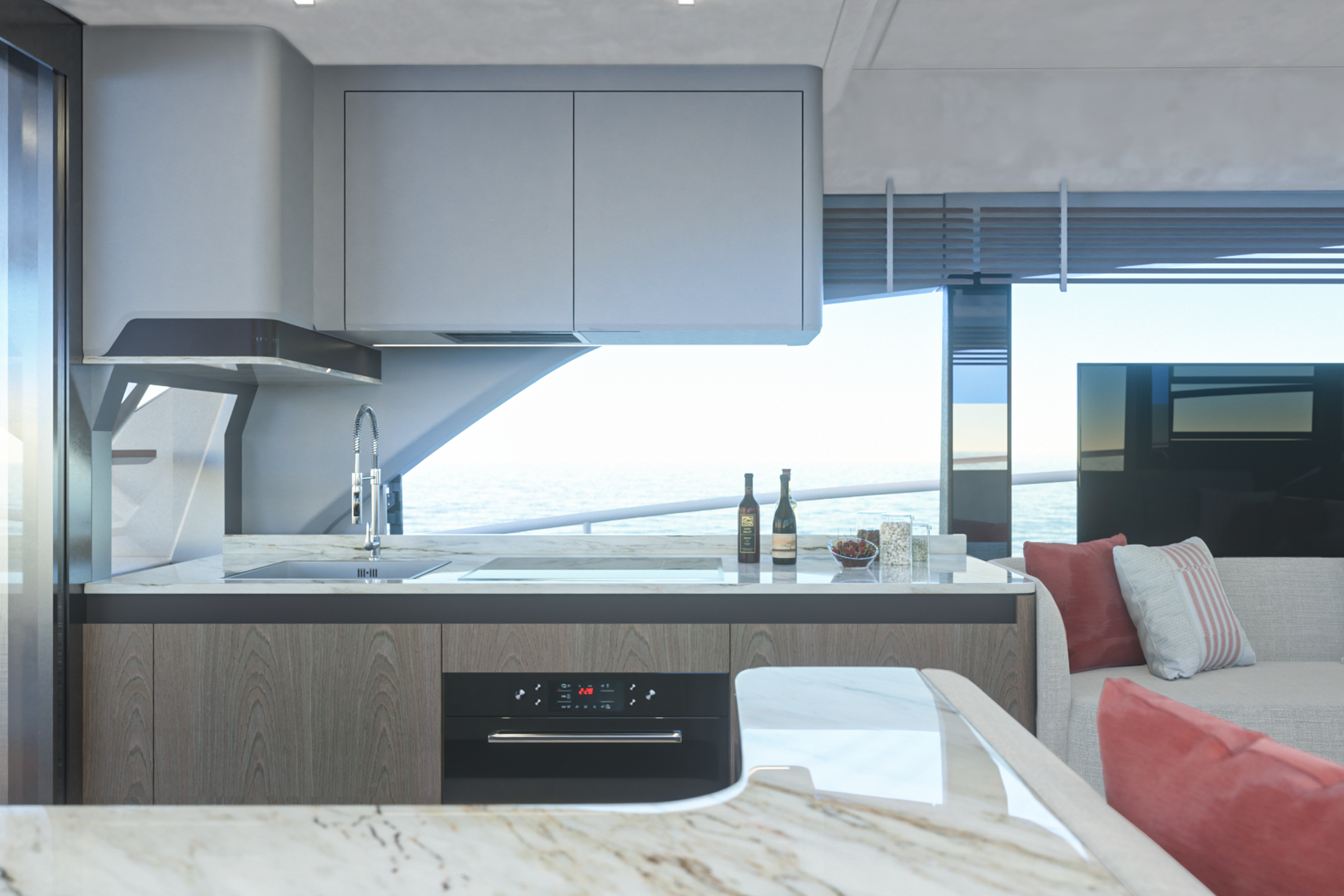

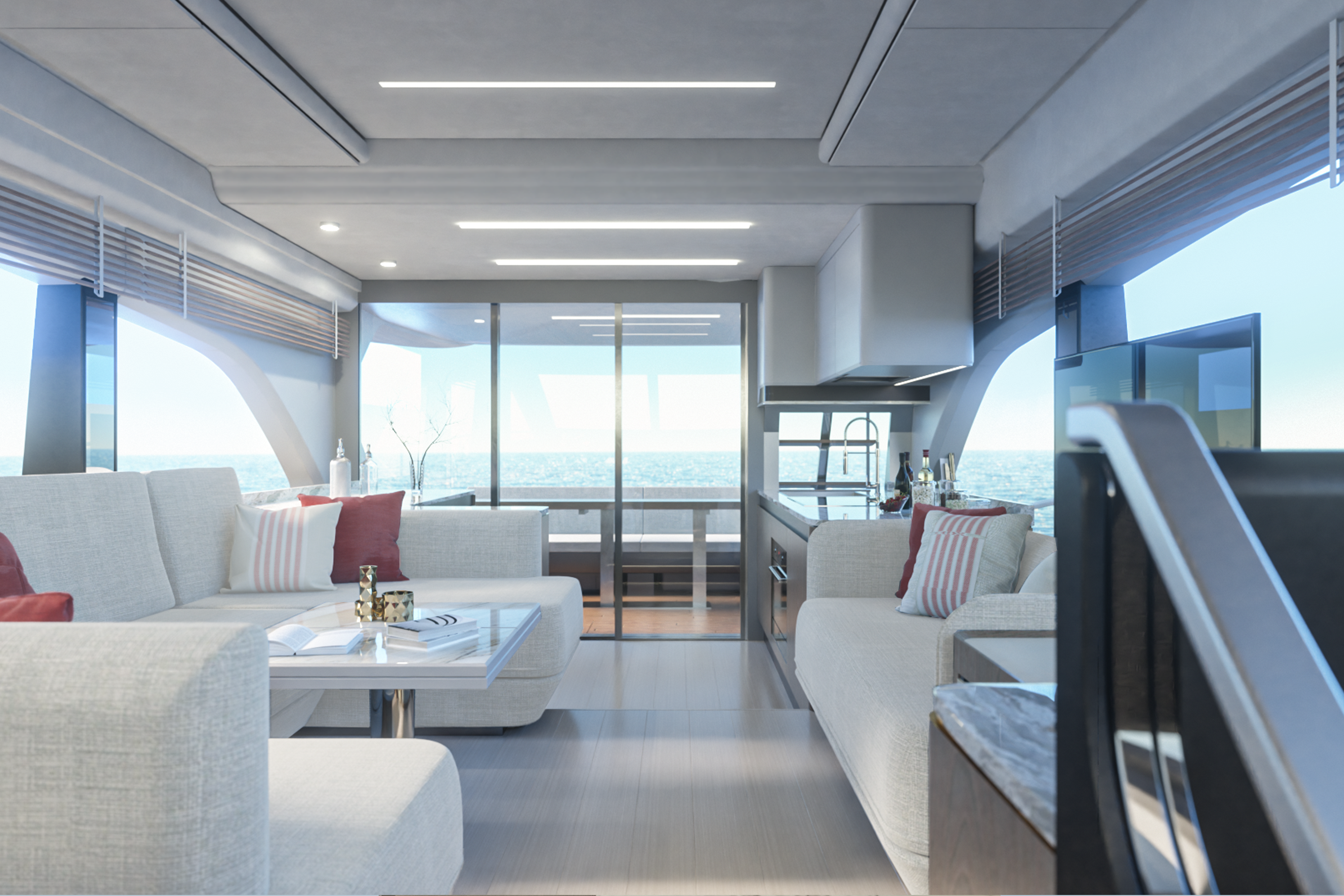

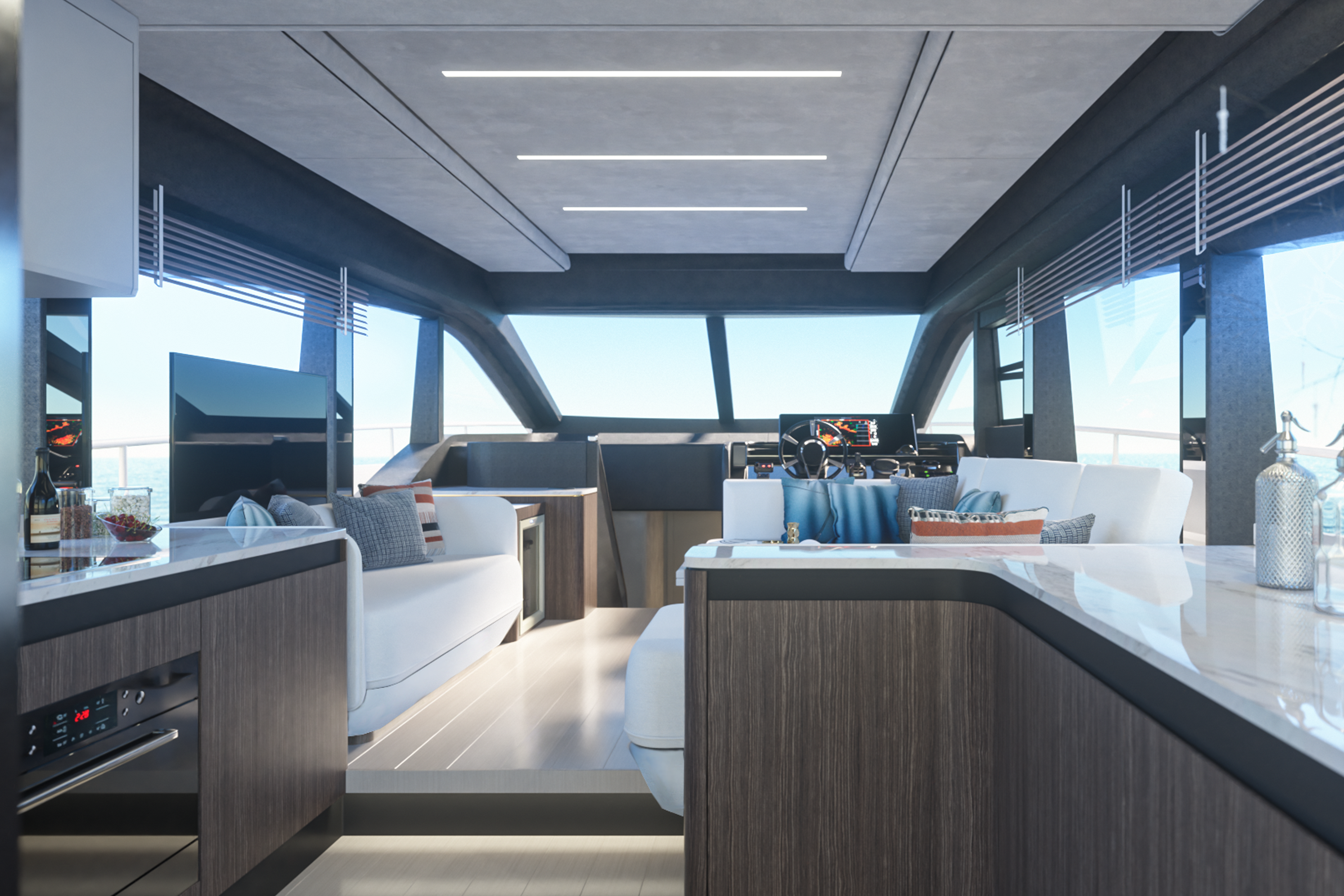

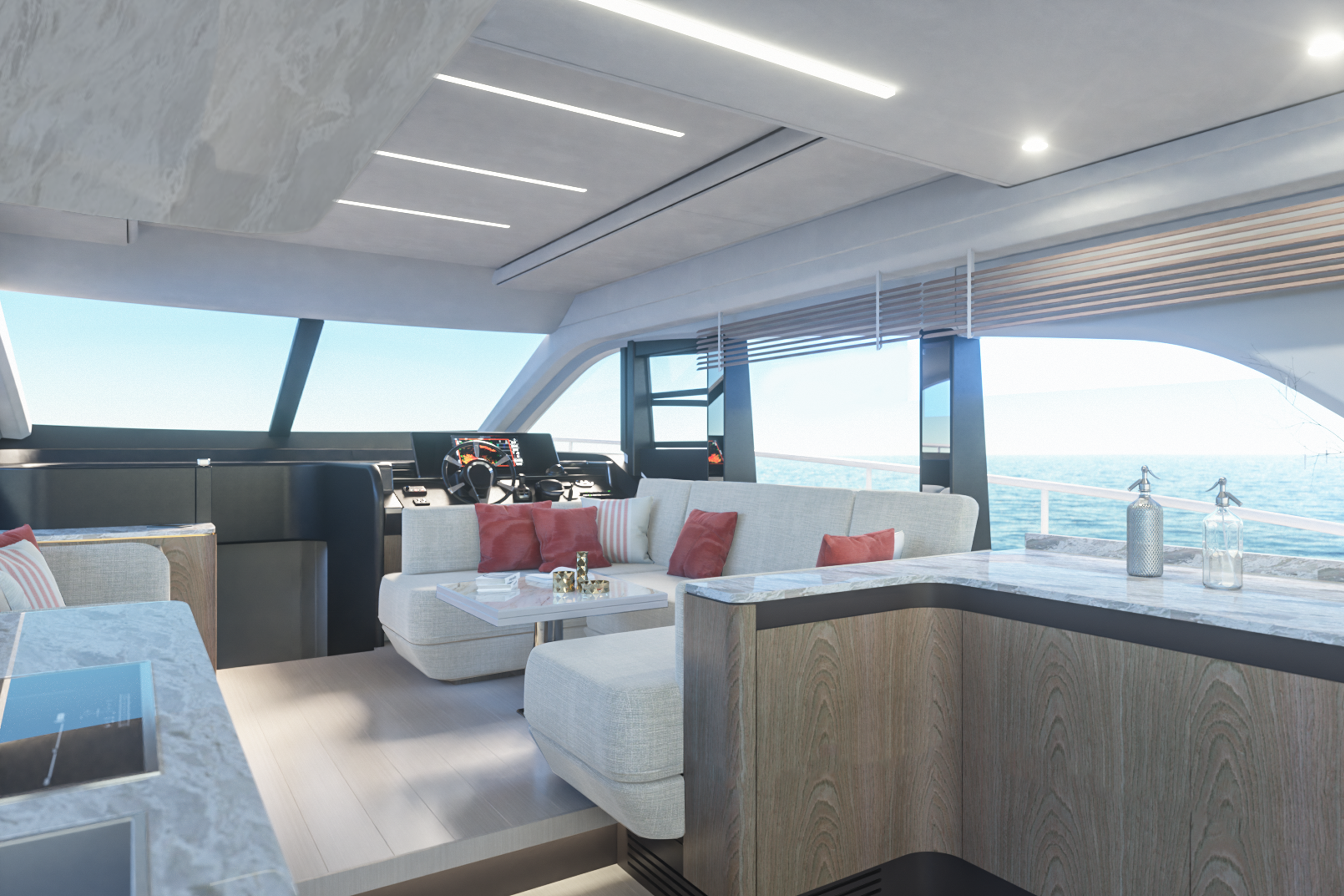

Saloon: wider and generous dimensions with full-width crystal door that divides the saloon from the cockpit

Double -starboard and port-lowering windows (captain)

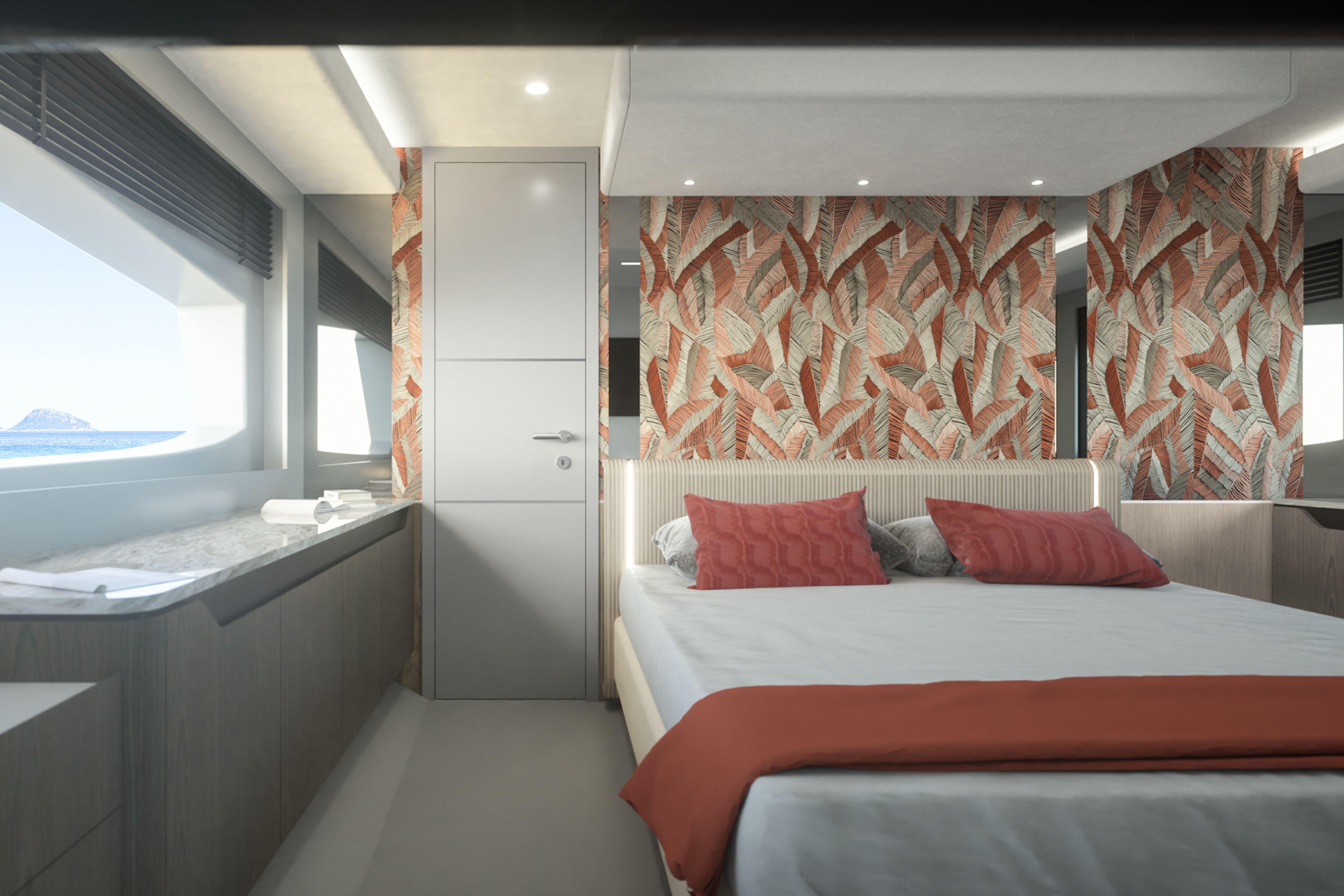

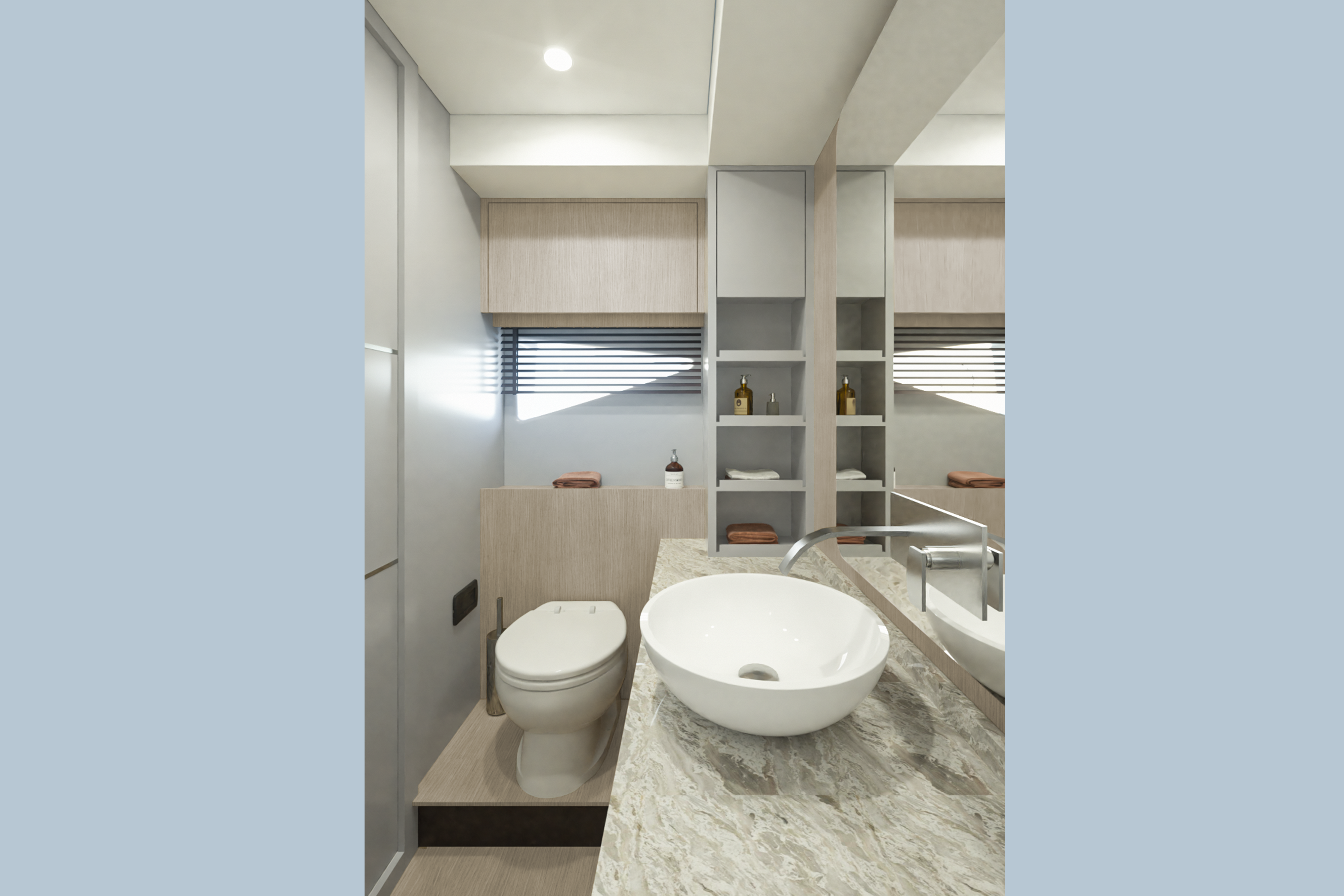

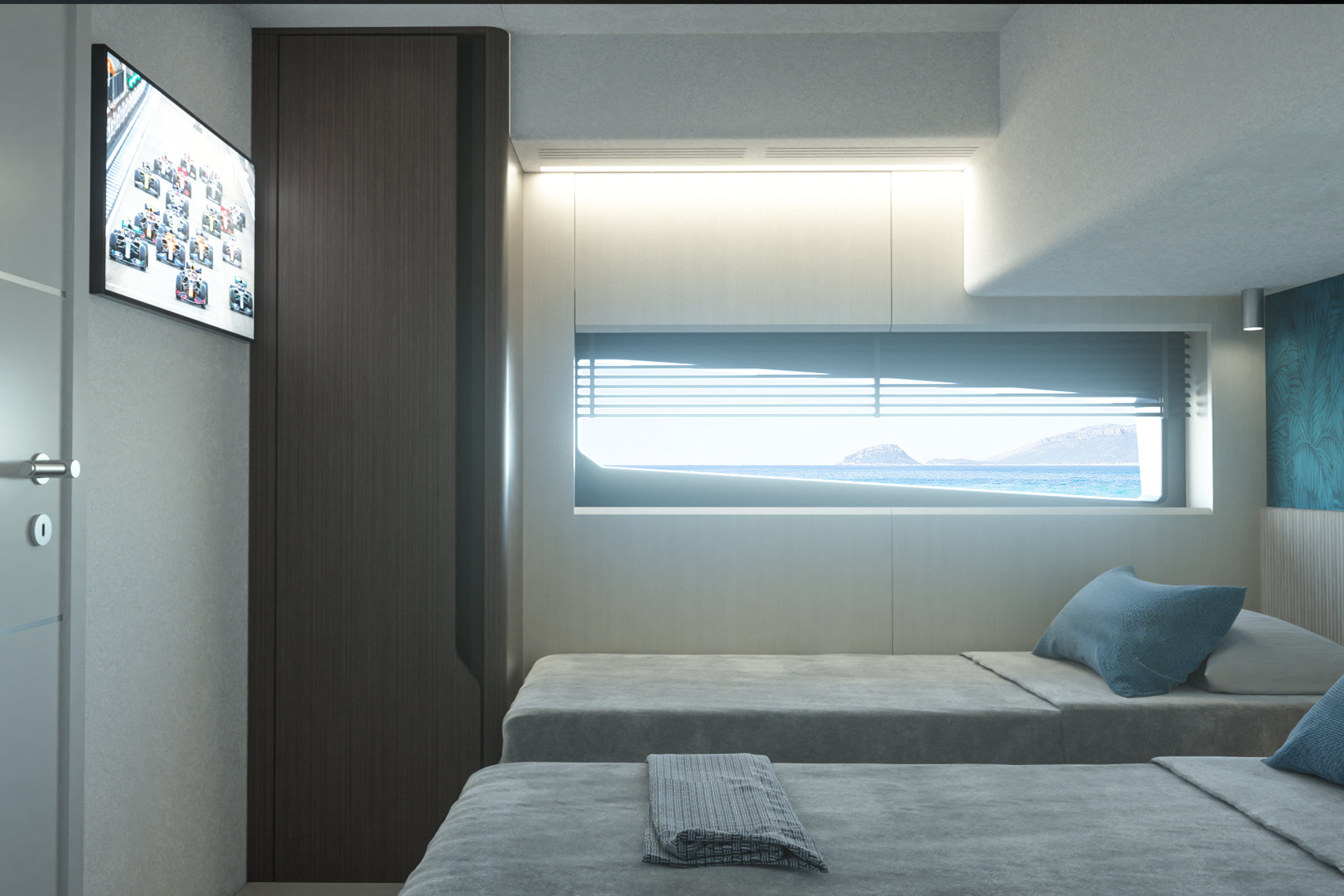

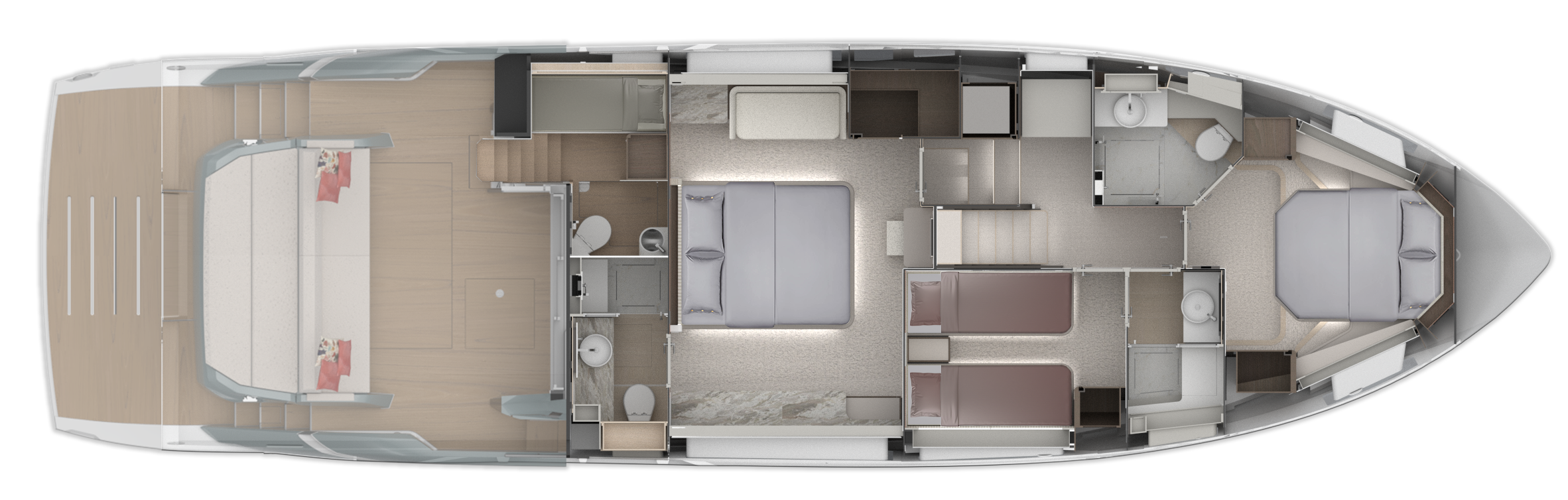

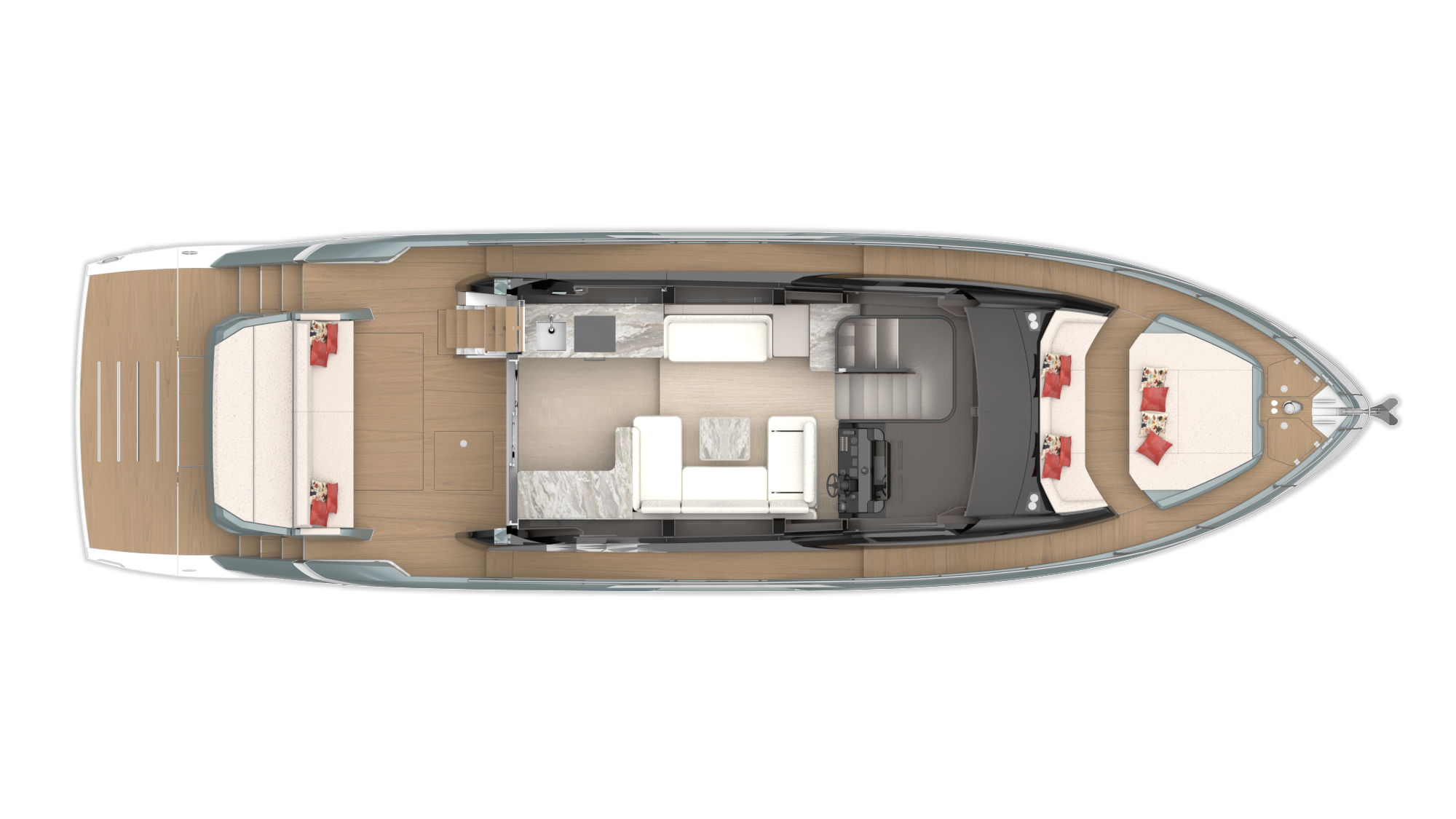

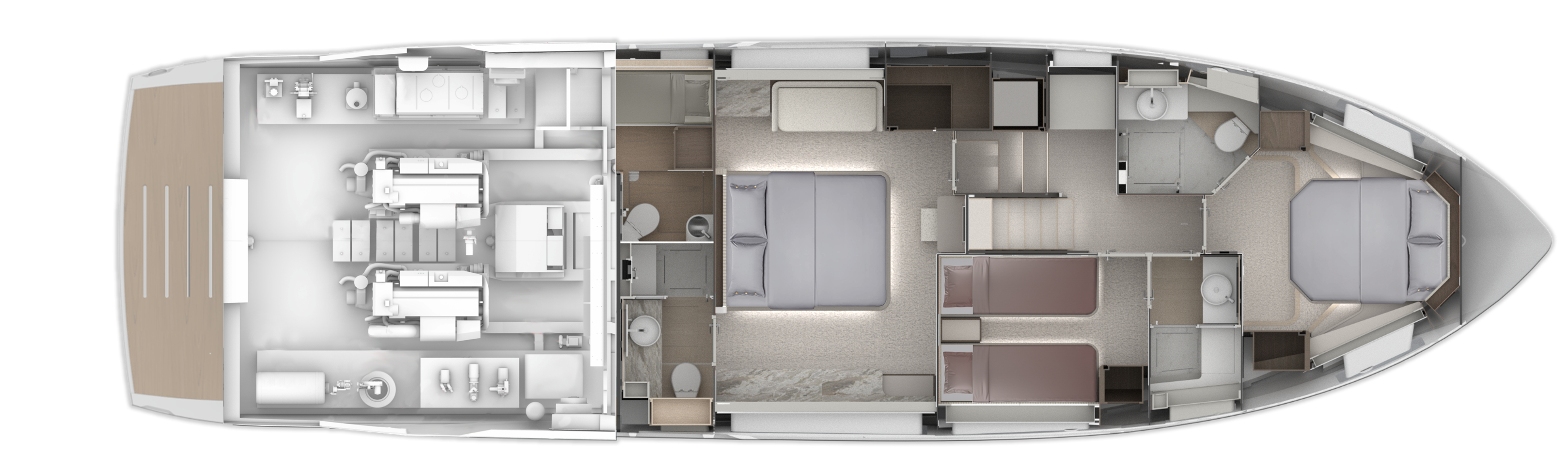

Interior layout: the layout has been designed to support the use of the spaces in an independent and reserved way by different users at the same time, also during navigation (3 cabins + 3 baths)



Fly deck + bow area relax + bathing platform + stern area living: These spaces can be used simultaneously also during navigation

Bow area relax: bow sunpad – bow sofa

Dining area: Cockpit sofa convertible into double sunbathing

Bathing platform: equipped with BBQ station

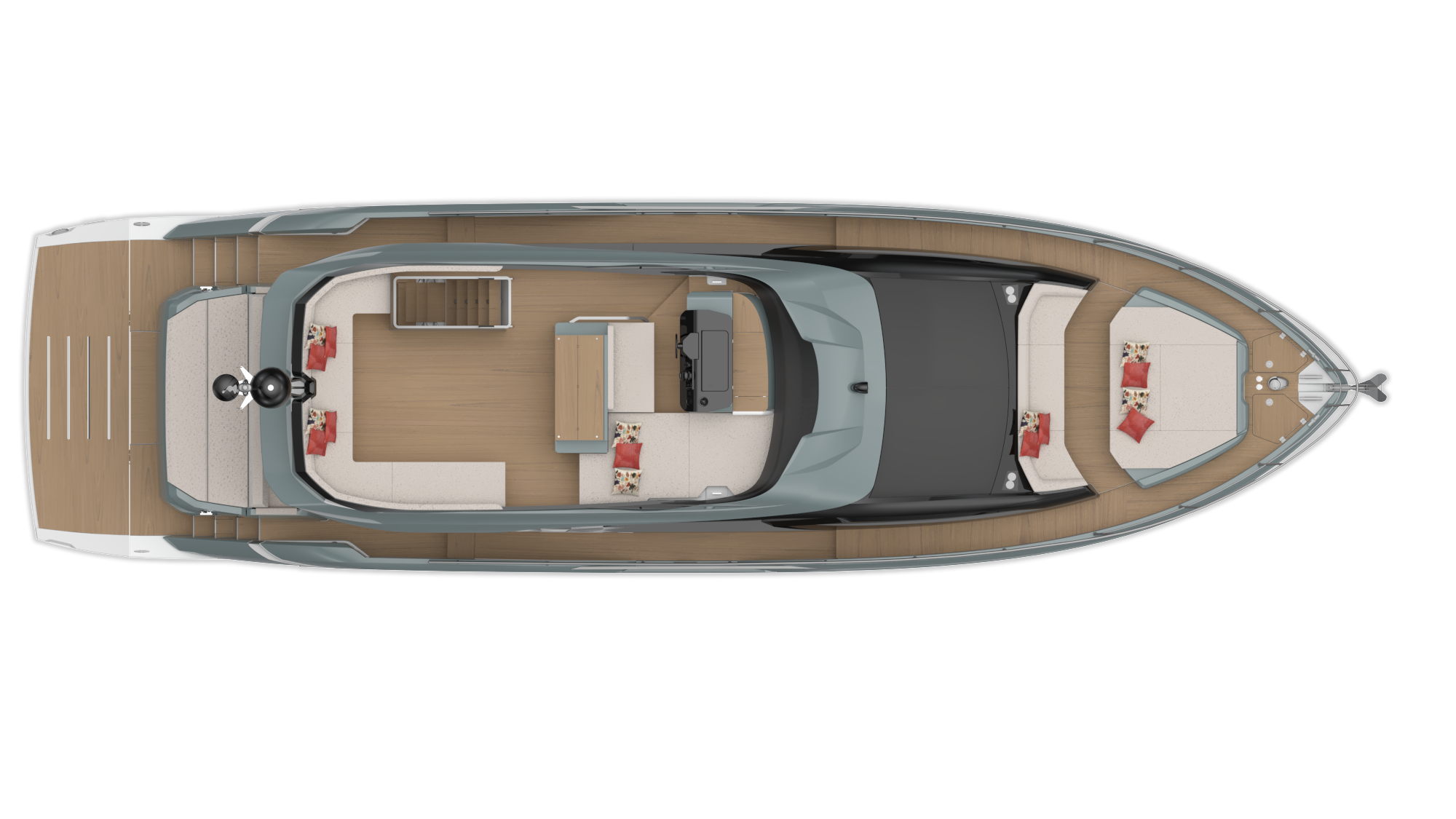

Flybridge: area relax + sunpad (captain side) + large stern dining area

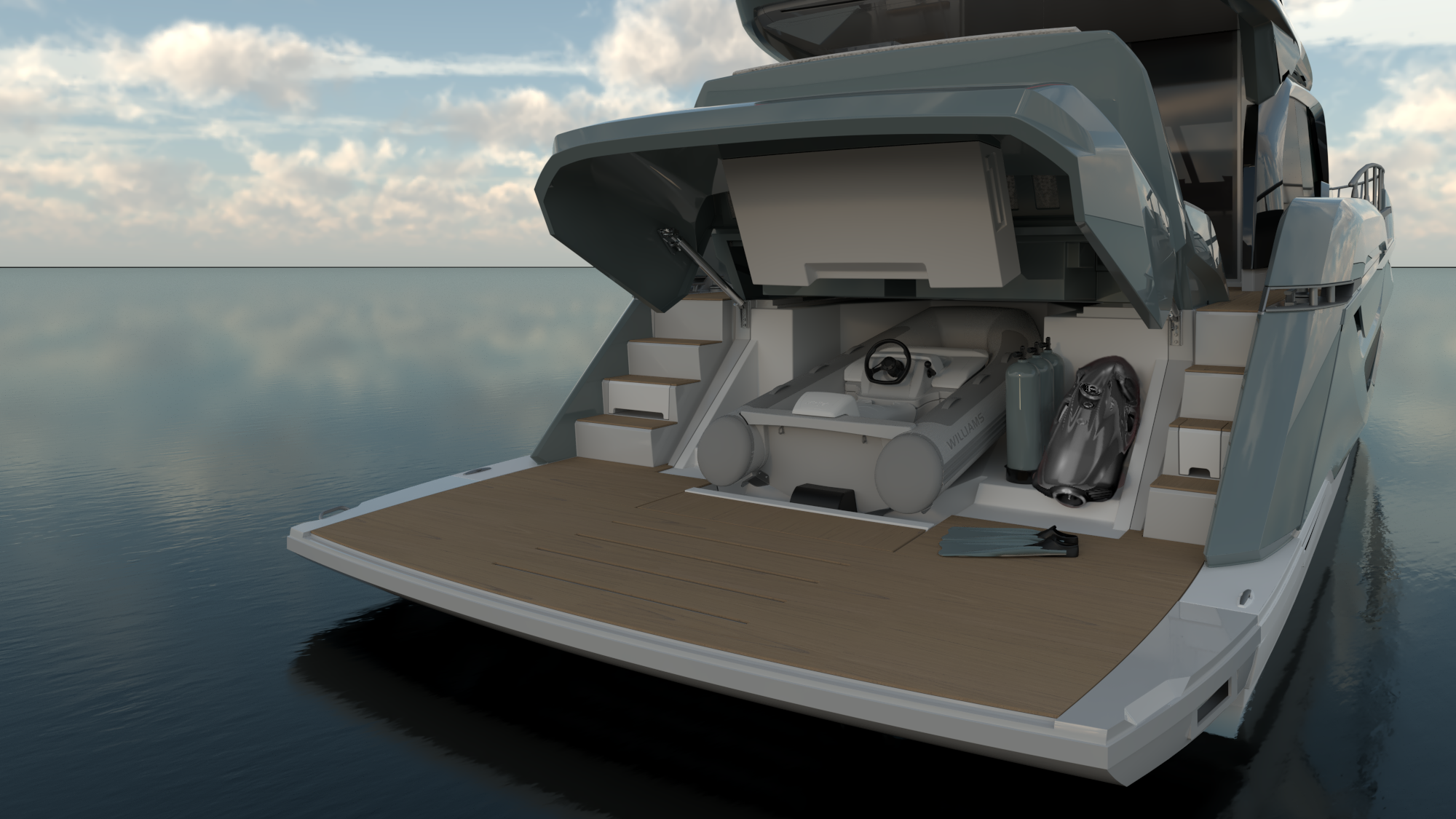

Garage: something really uncommon for this range of boats: Hangar for tender housing with launch rollers and electric winch

Crew cabin: also can be used as toys storage

Lower: accessible for the whole height  (washing machine + dryer machine+ frigo + freezer)


Fuel tank XL: longer distance = increase of the fuel range

Storage space XL: extra volume storages available on board

Technical Specifications

Lenght 17,93 m
EC Certifying Length 16,385 m
Floating Length 13,680 m
Total height 6,83 m
Berths n. 5+1
Toilets n. 3+1
Guests 14
Cabins 3+1
Propulsion System IPS 2
Engine Volvo IPS 950 (downgrade IPS800)
Fuel Capacity 2100 L
Fresh Water Capacity 750 L
Toilet Holding Tank 160 L
Water Heater 80 L
Building Material VTR
Cabin Height Max 2,00 m
Tender Dimension 2,8 m
Project category B

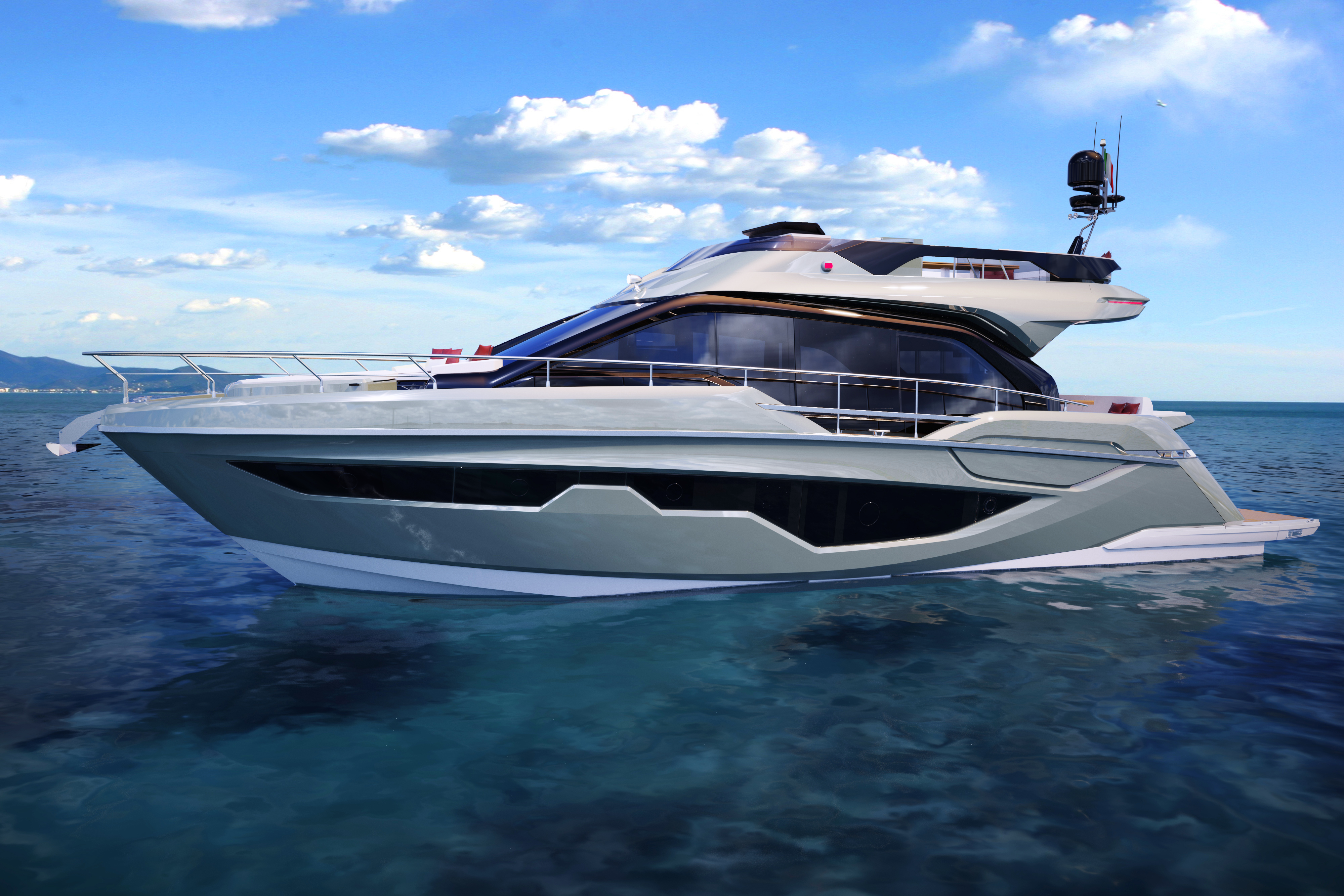

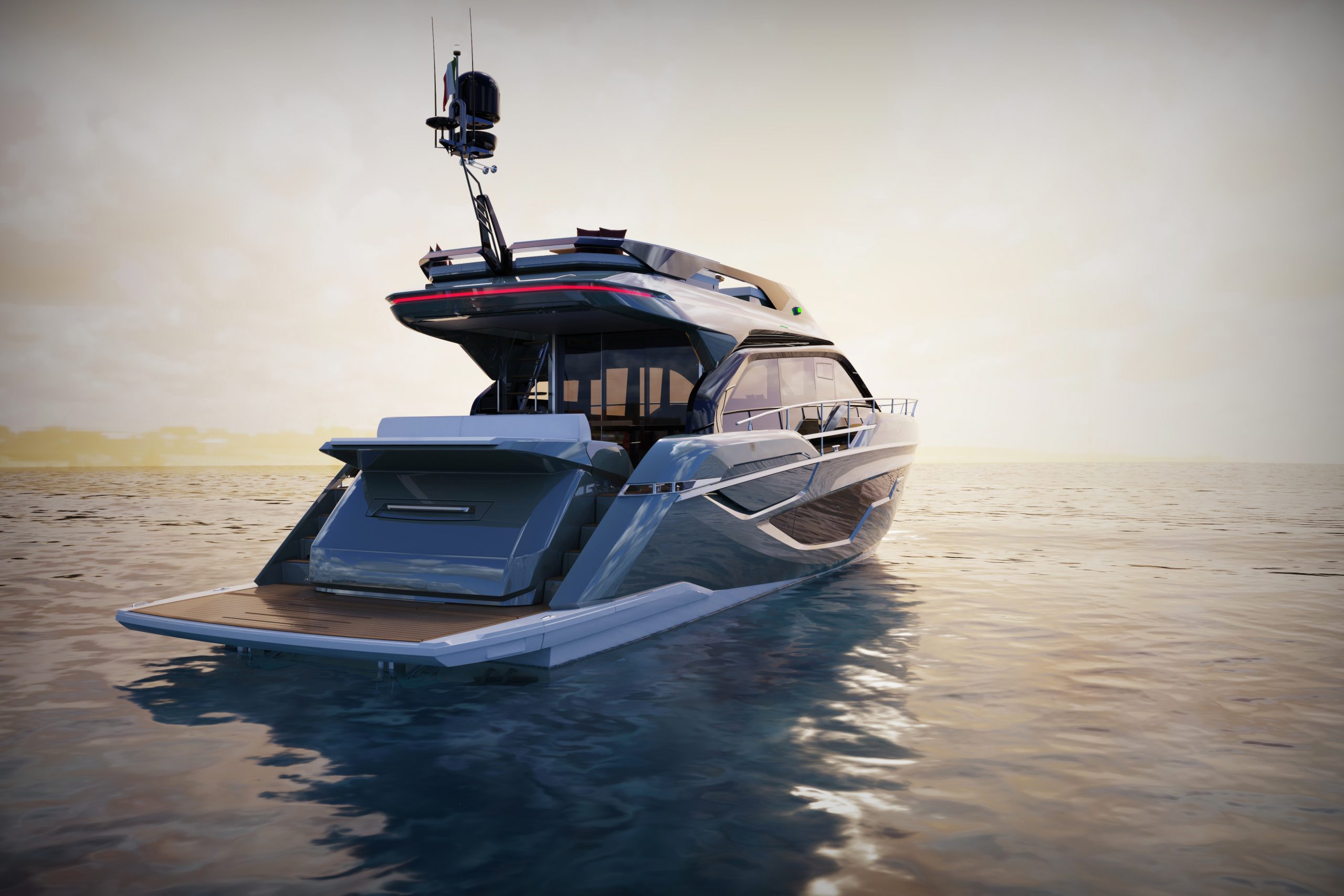

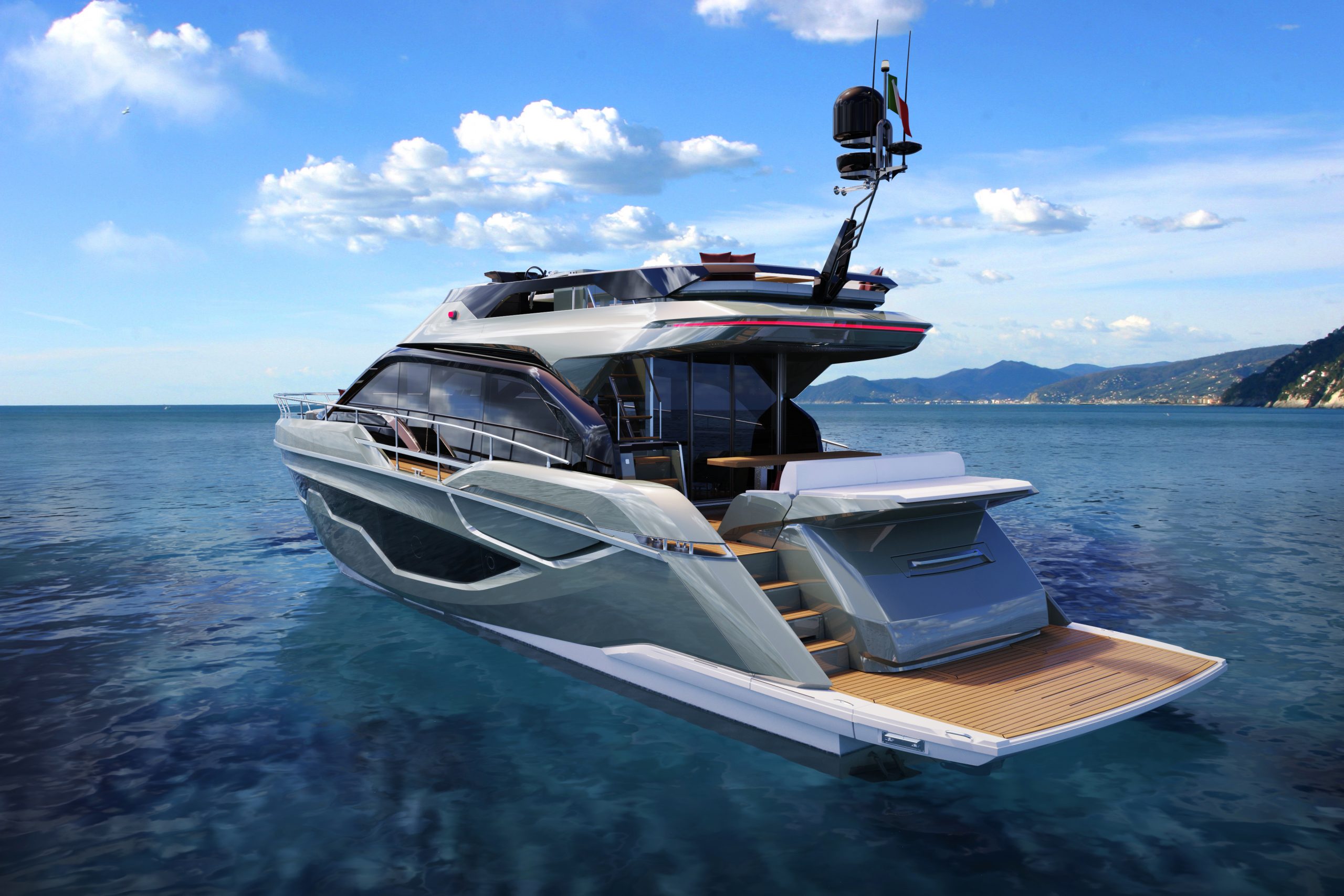

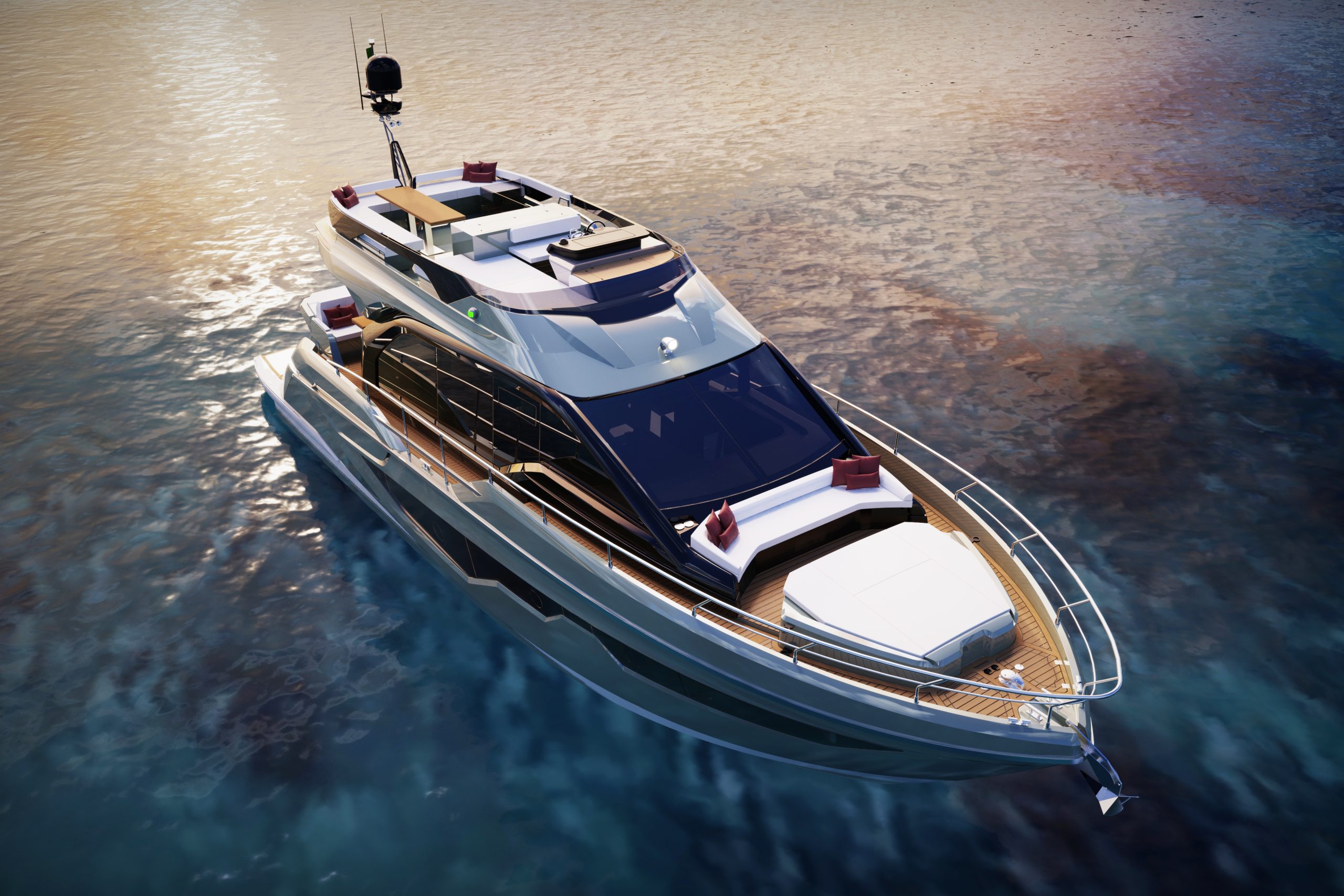

F5X is the only yacht that enables you to enjoy the space of a 60 ft boat, with a 54 ft boat maneuverability

All in one yacht
